Complete Voltas AC error code guide for Split & Window AC. Learn causes, quick fixes, and when to call a technician. Based on official manuals.

voltas error codes

TL;DR

  • EE/E0 (EEPROM faults) happen when the PCB memory chip gets damaged, often from power surges.
  • E1/E2 (indoor fan issues) are usually caused by a weak capacitor, worn bearings, or faulty feedback wiring.
  • E3/E4 (sensor faults) occur when temperature sensors have loose wiring or have failed.
  • E6/E8 (communication faults) result from damaged or loose wiring between indoor and outdoor units.
  • F1/F2 (compressor start issues) stem from phase failure, low voltage, or a weak capacitor.
  • F3 (IPM fault) happens when the power module overheats due to poor ventilation.
  • F5–F9 (sensor and fan faults) point to loose wiring or failed sensors on the outdoor unit.
  • P-series protection codes trigger from voltage instability, overheating, or refrigerant issues.
  • L-series drive codes relate to unstable power supply or compressor phase current problems.
  • E9 (Wi-Fi fault) applies only to Wi-Fi models and usually needs a module reset or replacement.

Quick Find Your Voltas AC Error Codes

Error Code & MeaningQuick Solutions
Indoor Unit (IDU)
EE – Indoor Machine EE (EEPROM) FaultTurn AC off and on. If EE returns, indoor PCB memory chip is faulty. Call a technician to replace the PCB.
E1 – Indoor Fan FaultCheck if indoor fan blades spin freely. Inspect fan motor wiring. Get the motor tested or replaced by a technician.
E2 – Indoor Fan Zero-Crossing Detection AbnormalRestart the AC once. If the error repeats, the fan motor sync signal circuit is faulty. Needs professional PCB or motor check.
E3 – Indoor Coil Sensor FaultCheck if the coil sensor wire is loose or unplugged. Clean the sensor connector. Replace the sensor if damaged.
E4 – Indoor Ambient Temperature Sensor FaultInspect the room temperature sensor near the coil. Reconnect if loose. Replace the sensor if faulty.
E6 – Indoor & Outdoor Unit Communication FaultCheck the connecting wire between indoor and outdoor units. Look for loose, cut, or corroded wiring. Tighten or replace as needed.
Outdoor Unit (ODU)
E0 – Outdoor EE (EEPROM) FaultRestart the unit once. If it persists, the outdoor PCB memory is damaged. Requires PCB replacement by a technician.
E8 – Outdoor Communication FaultCheck wiring between indoor and outdoor units for damage or loose terminals. Repair or replace faulty wiring.
F1 – Compressor Starting Abnormal (Phase Failure / Reverse Phase)Check power supply phase and voltage. Inspect compressor wiring connections. Call a technician if compressor fails to start.
F2 – Compressor Out-of-Step FaultTurn AC off for a few minutes and restart. If it repeats, compressor or PCB needs professional inspection.
F3 – IPM (Intelligent Power Module) FaultCheck outdoor unit ventilation and heat sink. Faulty IPM module needs replacement by a trained technician.
F4 – Compressor Shell Temperature Protection FaultLet the compressor cool down before restarting. Check for blocked airflow or overheating. Get compressor checked if it repeats.
F5 – Discharge Temperature Sensor FaultInspect the discharge pipe sensor wiring. Clean or reconnect loose terminals. Replace sensor if faulty.
F6 – Suction Temperature Sensor FaultCheck the suction pipe sensor connection. Replace the sensor if it shows wrong readings.
F7 – Outdoor Coil Temperature Sensor FaultInspect the outdoor coil sensor wiring. Clean condenser coil if blocked. Replace sensor if damaged.
F8 – Outdoor Ambient Temperature Sensor FaultCheck outdoor ambient sensor placement and wiring. Replace if giving incorrect readings.
F9 – Outdoor DC Fan FaultCheck if the outdoor fan spins freely. Inspect fan motor and capacitor. Replace faulty parts.
Protection Codes
P1 – Outdoor AC Current ProtectionCheck power supply voltage stability. Ensure proper earthing. Use a stabilizer if voltage fluctuates often.
P2 – Compressor Phase Current ProtectionInspect compressor wiring and current draw. Get compressor windings tested by a technician.
P3 – Outdoor Unit AC Voltage Over-High / Over-Low ProtectionCheck incoming power supply voltage. Install a voltage stabilizer. Call an electrician if voltage stays unstable.
P4 – DC Bus Voltage Over-High / Over-Low ProtectionRestart the unit after checking power supply. If it repeats, PCB or capacitor needs professional inspection.
P5 – IPM Over-High Temperature ProtectionCheck outdoor unit ventilation and clean the heat sink. Ensure the unit isn’t in direct sunlight. Call a technician if it continues.
P6 – Discharge Temperature Overheat ProtectionCheck refrigerant level and outdoor airflow. Low gas or blocked coil can cause overheating. Needs technician inspection.
P7 – Cooling Indoor Coil Anti-Freezing ProtectionClean the air filter and check airflow. Low refrigerant can also cause coil freezing. Get gas level checked.
P8 – Cooling Outdoor Coil Overheat ProtectionClean the outdoor condenser coil. Ensure proper airflow around the outdoor unit. Check for blockages.
P9 – Heating Indoor Coil Overheat ProtectionApplies mainly in heat mode. Check indoor coil airflow and filter cleanliness. Call a technician if it persists.
PC – Cooling Outdoor Ambient Temperature Over-Low ProtectionAC may pause cooling in very low outdoor temperatures. This is normal protection behavior in extreme cold.
PH – Heating Outdoor Ambient Temperature Over-High ProtectionApplies mainly in heat mode during high outdoor temperatures. Usually resolves once temperature drops.
Drive / Electrical Protection Codes
L1 – Drive Bus Voltage Over-High ProtectionCheck incoming power supply for voltage spikes. Use a stabilizer. Get PCB checked if error repeats.
L2 – Drive Bus Voltage Over-Low ProtectionCheck for low voltage supply. Install a stabilizer. Call a technician if the issue continues.
L3 – Drive Phase Current Overload FaultInspect compressor and wiring for overload signs. Requires technician diagnosis of the drive circuit.
L4 – Phase Current Sampling AbnormalRestart the unit once. If it persists, the current sensing circuit on the PCB needs professional repair.
Wi-Fi Model
E9 – Wi-Fi Module FaultAvailable only on Wi-Fi models. View this code in Test Mode by pressing the Emergency Switch while powering on the indoor unit. Reset or replace the Wi-Fi module if faulty.

Hire Our Expert Voltas AC Technician for Same Day Home Service in Kolkata

9831015086 Contact






    *We do not claim copyright over the logos and brand names used on our website; they are used for illustration purposes only. See disclaimer.

    Voltas AC error codes appear when the indoor or outdoor unit detects a fault in its sensors, wiring, or electrical components. The display shows these codes so users can identify problems quickly, without opening the unit. There’s a difference between error codes and protection codes.

    Error codes point to actual component faults, like a sensor or motor failure. Protection codes trigger when the AC senses unsafe conditions, like high voltage or overheating, and shuts down to prevent damage.

    This guide covers both Split and Window Voltas AC models. It is based on official Voltas user manuals and built for Indian users who want quick, reliable troubleshooting help.

    Voltas AC Error Code Explanation With Possible Solutions

    Indoor Unit (IDU)

    EE – Indoor Machine EE (EEPROM) Fault

    What Causes This Error: The indoor unit’s PCB stores its settings in an EEPROM memory chip. This code appears when the chip is damaged, corrupted, or cannot be read properly. Power surges or PCB aging are common triggers.

    How to Fix The Error: Turn the AC off, wait a few minutes, and restart it once. If the EE code returns, the memory chip inside the PCB has failed and the board needs replacement by a trained technician.

    E1 – Indoor Fan Fault

    What Causes This Error: This error points to a problem in the indoor blower fan, often from a weak capacitor, worn motor bearings, burnt motor winding, or loose wiring. Dust buildup on the blower wheel can also strain the motor.

    How to Fix The Error:

    • Check if the blower rotates freely by hand
    • Test the fan capacitor and replace it if weak
    • Inspect wiring connections for looseness or damage
    • Replace the motor if bearings or windings are damaged

    E2 – Indoor Fan Zero-Crossing Detection Abnormal

    What Causes This Error: This fault occurs when the PCB cannot detect the fan motor’s speed feedback signal correctly. It often relates to a faulty feedback wire connection or a malfunctioning PG (permanent magnet) motor.

    How to Fix The Error: Check the feedback connector and wiring for secure connections. If the fan motor’s feedback signal remains inconsistent, the motor or PCB should be inspected and replaced by a technician.

    E3 – Indoor Coil Sensor Fault

    What Causes This Error: The coil temperature sensor monitors the evaporator coil to prevent freezing and overcooling. This error appears when the sensor wire is loose, damaged, or the sensor itself has failed.

    How to Fix The Error: Inspect the coil sensor and its connector for looseness or corrosion. Clean the connection point and reconnect firmly. Replace the sensor if it shows incorrect resistance readings.

    E4 – Indoor Ambient Temperature Sensor Fault

    What Causes This Error: The room temperature sensor tracks ambient air temperature to regulate compressor cycling. A loose connector, damaged wire, or aged sensor commonly triggers this fault.

    How to Fix The Error: Check the sensor near the indoor coil for loose or corroded connections. Reconnect if needed, or replace the sensor if it gives inaccurate temperature readings.

    E6 – Indoor & Outdoor Unit Communication Fault

    What Causes This Error: Split ACs use a signal wire to let the indoor and outdoor units communicate. This error shows up when that wire is cut, loose, corroded, or shorted.

    How to Fix The Error:

    • Inspect the communication wire between both units for cuts or damage
    • Tighten any loose terminal connections
    • Replace the wire if insulation is damaged or if it tests faulty

    Outdoor Unit (ODU)

    E0 – Outdoor EE (EEPROM) Fault

    What Causes This Error: Similar to the indoor EE fault, this occurs when the outdoor PCB’s memory chip becomes damaged or unreadable, often due to voltage surges or component aging.

    How to Fix The Error: Restart the unit once to rule out a temporary glitch. If the error persists, the outdoor PCB’s memory chip is damaged and requires professional PCB replacement.

    E8 – Outdoor Communication Fault

    What Causes This Error: This fault relates to a break in communication between the outdoor and indoor units, usually caused by damaged wiring, loose terminals, or water ingress into outdoor electrical connections.

    How to Fix The Error: Check the communication wiring at both the indoor and outdoor ends. Repair or replace any damaged sections and ensure connections are dry and secure.

    F1 – Compressor Starting Abnormal (Phase Failure / Reverse Phase)

    What Causes This Error: The compressor fails to start correctly due to an incoming power phase issue, reversed wiring, or low voltage. A weak starting capacitor can also prevent proper compressor startup.

    How to Fix The Error:

    • Check incoming power supply phase and voltage levels
    • Inspect compressor wiring for correct phase sequencing
    • Test and replace a weak capacitor if needed
    • Call a technician if the compressor still fails to start

    F2 – Compressor Out-of-Step Fault

    What Causes This Error: This happens when the compressor’s rotor loses sync with the drive signal, often due to voltage instability, overload, or an aging compressor.

    How to Fix The Error: Turn the AC off for a few minutes and restart. If the fault repeats, have a technician check the compressor windings, drive circuit, and voltage supply.

    F3 – IPM (Intelligent Power Module) Fault

    What Causes This Error: The IPM controls power to the inverter compressor. This fault triggers when the module overheats, has dried thermal paste, or suffers from a manufacturing defect.

    How to Fix The Error: Check outdoor unit ventilation and clean the heat sink area. A technician should inspect the IPM module, reapply thermal paste, or replace the module if damaged.

    F4 – Compressor Shell Temperature Protection Fault

    What Causes This Error: The compressor shell overheats due to continuous operation, low refrigerant, poor lubrication, or a dirty condenser blocking heat rejection.

    How to Fix The Error: Allow the compressor to cool down before restarting. Clean the condenser coil, check refrigerant levels, and ensure proper outdoor airflow to prevent repeat overheating.

    F5 – Discharge Temperature Sensor Fault

    What Causes This Error: This sensor monitors the hot refrigerant gas temperature leaving the compressor. A loose connector, damaged wire, or worn sensor causes this fault.

    How to Fix The Error: Inspect the discharge sensor wiring and connector on the compressor discharge pipe. Reconnect if loose, or replace the sensor if it shows abnormal readings.

    F6 – Suction Temperature Sensor Fault

    What Causes This Error: The suction sensor tracks refrigerant temperature entering the compressor. This fault appears from loose wiring, sensor damage, or incorrect sensor placement.

    How to Fix The Error: Check the suction pipe sensor connection for security and correct placement. Replace the sensor if it gives inconsistent or faulty readings.

    F7 – Outdoor Coil Temperature Sensor Fault

    What Causes This Error: This sensor monitors the outdoor condenser coil temperature. Dirty coils, loose sensor wiring, or a failed sensor commonly trigger this error.

    How to Fix The Error: Clean the outdoor condenser coil if blocked with dust. Inspect the sensor wiring and connector, and replace the sensor if faulty.

    F8 – Outdoor Ambient Temperature Sensor Fault

    What Causes This Error: This sensor measures outside air temperature to regulate fan speed and compressor operation. Loose wiring or sensor failure causes this fault.

    How to Fix The Error: Check the ambient sensor’s position and wiring near the outdoor unit. Replace the sensor if readings remain inaccurate after reconnecting.

    F9 – Outdoor DC Fan Fault

    What Causes This Error: The outdoor condenser fan fails to rotate properly due to a weak capacitor, worn motor bearings, blocked fan blades, or motor feedback issues in DC fan models.

    How to Fix The Error:

    • Check if the fan spins freely by hand with power off
    • Remove any debris blocking the fan blades
    • Test the capacitor and motor feedback wiring
    • Replace the fan motor if it remains faulty

    Protection Codes

    P1 – Outdoor AC Current Protection

    What Causes This Error: This protection activates when the outdoor unit draws excess current, often from voltage instability, poor earthing, or an overloaded compressor.

    How to Fix The Error: Check power supply voltage stability and confirm proper earthing. Install a stabilizer if the area has frequent voltage fluctuations.

    P2 – Compressor Phase Current Protection

    What Causes This Error: The compressor draws abnormal current in one or more phases, often due to failing windings or an internal compressor fault.

    How to Fix The Error: Have a technician measure compressor winding resistance and running current with a clamp meter. Replace the compressor if internal windings test faulty.

    P3 – Outdoor Unit AC Voltage Over-High / Over-Low Protection

    What Causes This Error: This protection trips when incoming voltage goes above or below the AC’s safe operating range, common during peak summer load or unstable power supply.

    How to Fix The Error: Check the incoming power supply voltage using a multimeter. Install a voltage stabilizer to protect the unit from fluctuations.

    P4 – DC Bus Voltage Over-High / Over-Low Protection

    What Causes This Error: The internal DC bus voltage, which powers the inverter compressor, goes outside safe limits due to power supply issues or capacitor failure.

    How to Fix The Error: Check the incoming power supply first. If the fault repeats, have a technician inspect the PCB and capacitor circuit for damage.

    P5 – IPM Over-High Temperature Protection

    What Causes This Error: The IPM module overheats due to poor ventilation, blocked heat sink, or direct sunlight on the outdoor unit.

    How to Fix The Error: Clean the heat sink and ensure the outdoor unit has proper airflow. Provide shade if the unit sits in direct sunlight, and call a technician if overheating continues.

    P6 – Discharge Temperature Overheat Protection

    What Causes This Error: The compressor discharge gas becomes too hot, often from low refrigerant, a blocked condenser, or poor outdoor airflow.

    How to Fix The Error: Check refrigerant gas levels and clean the outdoor condenser coil. A technician should verify pressure readings and refill gas if levels are low.

    P7 – Cooling Indoor Coil Anti-Freezing Protection

    What Causes This Error: The indoor coil temperature drops too low, usually from a dirty air filter, blocked blower, or low refrigerant gas causing overcooling.

    How to Fix The Error: Clean the air filter and indoor blower to restore airflow. Check refrigerant levels, as low gas often causes coil freezing.

    P8 – Cooling Outdoor Coil Overheat Protection

    What Causes This Error: The outdoor condenser coil overheats from dirt buildup, blocked airflow, or a failing outdoor fan that cannot dissipate heat properly.

    How to Fix The Error: Clean the condenser coil thoroughly and ensure no objects block airflow around the outdoor unit. Check the outdoor fan motor if overheating continues.

    P9 – Heating Indoor Coil Overheat Protection

    What Causes This Error: This protection applies during heat mode when the indoor coil temperature rises too high, often from restricted airflow or a dirty filter.

    How to Fix The Error: Clean the air filter and check indoor airflow. Call a technician if the fault continues in heat mode.

    PC – Cooling Outdoor Ambient Temperature Over-Low Protection

    What Causes This Error: The AC pauses cooling operation when outdoor temperature drops too low for safe compressor function. This is a built-in safety response, not a component failure.

    How to Fix The Error: This is normal protective behavior in extreme cold weather. Operation typically resumes once outdoor temperature rises to a safe range.

    PH – Heating Outdoor Ambient Temperature Over-High Protection

    What Causes This Error: This protection triggers in heat mode when outdoor temperature is too high for the heating cycle to function safely.

    How to Fix The Error: This usually resolves on its own once outdoor temperature drops. No repair is needed unless the fault appears outside expected weather conditions.

    Drive / Electrical Protection Codes

    L1 – Drive Bus Voltage Over-High Protection

    What Causes This Error: The compressor drive circuit detects voltage higher than its safe threshold, often from power supply spikes or an unstable electrical connection.

    How to Fix The Error: Check the incoming power supply for voltage spikes and install a stabilizer. Have the PCB inspected if the error recurs.

    L2 – Drive Bus Voltage Over-Low Protection

    What Causes This Error: This fault occurs when supply voltage to the drive circuit falls below the safe operating level, common in areas with weak power infrastructure.

    How to Fix The Error: Check for low incoming voltage and install a stabilizer. Call a technician if the fault continues despite stable voltage.

    L3 – Drive Phase Current Overload Fault

    What Causes This Error: The compressor drive circuit senses excess current in one or more phases, often linked to compressor overload or wiring faults.

    How to Fix The Error: Have a technician inspect the compressor and wiring for overload signs. The drive circuit may need diagnosis to confirm the exact fault location.

    L4 – Phase Current Sampling Abnormal

    What Causes This Error: The PCB’s current-sensing circuit fails to read compressor phase current correctly, usually from a sensor fault or PCB component failure.

    How to Fix The Error: Restart the AC once to check for a temporary glitch. If the fault persists, the current sensing circuit on the PCB needs professional repair or replacement.

    Wi-Fi Model

    E9 – Wi-Fi Module Fault

    What Causes This Error: This code applies only to Wi-Fi enabled Voltas AC models and indicates a fault in the built-in Wi-Fi module, often from firmware issues or module damage.

    How to Fix The Error: View this code in Test Mode by pressing the Emergency Switch while powering on the indoor unit. Reset the Wi-Fi module first. If the fault remains, the module will need replacement by a technician.

    For expired-warranty Voltas AC repair in Kolkata, Urban Service Plaza is the service centre to call our technicians offer same-day doorstep repair to get you back up and running fast.

    Troubleshoot for Most Common Voltas AC Problems

    voltas ac

    AC Does Not Operate Immediately After Restarting

    Possible Causes:

    • Built-in compressor protection delay activates after every shutdown
    • The compressor requires roughly 3 minutes before it can safely restart
    • This safeguard protects the compressor from repeated short-cycling damage

    What to Do:

    • Wait about 3 minutes before expecting the AC to start again
    • Avoid repeatedly switching the unit on and off during this delay
    • No repair is needed, as this is a normal built-in protection feature

    Unusual Smell From The Indoor Unit

    Possible Causes:

    • The AC itself does not generate odors; smells usually come from the surrounding environment
    • A dirty air filter can trap dust, mold, or bacteria that release odor when air passes through
    • Prolonged use without cleaning allows odor-causing buildup inside the indoor unit

    What to Do:

    • Clean the air filter regularly to remove trapped dirt and moisture
    • Have the indoor unit professionally cleaned if the smell continues
    • Contact an authorized service center for deep cleaning if the odor persists after filter cleaning

    Water Flowing Sound

    Possible Causes:

    • Refrigerant flows through internal pipes during normal operation
    • The sound often occurs when the compressor starts, stops, or runs continuously
    • This noise results from the natural refrigeration cycle, not a fault

    What to Do:

    • No action is required, as this is a normal operating sound
    • Confirm cooling performance remains normal alongside the sound
    • Contact a technician only if the sound is paired with reduced cooling or other symptoms

    Mist From The Indoor Unit

    Possible Causes:

    • High indoor temperature and humidity cause rapid cooling
    • Moisture in the air condenses quickly as the room cools down
    • This effect is more common in very humid climates or during initial startup

    What to Do:

    • Allow the unit to run for some time as indoor temperature and humidity stabilize
    • Watch for the mist to disappear naturally as cooling progresses
    • No repair is needed since this is a normal condition

    Cracking Noise

    Possible Causes:

    • Plastic components expand and contract due to temperature changes
    • This typically happens when the unit starts or stops
    • Sudden temperature shifts inside the unit trigger these small movements

    What to Do:

    • No action is required, as this is a normal operating sound
    • Monitor the unit if cracking becomes louder or more frequent over time
    • Contact a technician only if the noise is accompanied by reduced performance

    AC Does Not Run

    Possible Causes:

    • Power supply may be switched off or the plug may be loose
    • The circuit breaker or protection device may have tripped
    • Supply voltage may be too high or too low for safe operation
    • The timer setting may be incorrectly configured, delaying startup

    What to Do:

    • Check that the power supply is switched on and the plug is secure
    • Inspect the circuit breaker and reset it if tripped
    • Have a professional test the supply voltage if it seems abnormal
    • Verify and correct the timer settings on the remote

    Poor Cooling Or Heating Performance

    Possible Causes:

    • Incorrect temperature setting reduces cooling or heating efficiency
    • Blocked air inlet or outlet restricts proper airflow
    • A dirty air filter limits air circulation through the unit
    • Open doors or windows let conditioned air escape
    • Low fan speed setting or heat sources inside the room reduce efficiency

    What to Do:

    • Verify and adjust the temperature setting as needed
    • Clear any blockage from the air inlet or outlet
    • Clean the air filter regularly to maintain airflow
    • Close all doors and windows during operation
    • Increase fan speed and reduce heat sources in the room

    Remote Controller Not Working

    Possible Causes:

    • Electrical interference may temporarily disrupt the signal
    • The remote may be out of receiving range or blocked by obstacles
    • Weak or dead batteries can prevent proper signal transmission
    • Physical damage to the remote can stop it from functioning

    What to Do:

    • Unplug the indoor unit and plug it back in to reset
    • Ensure the remote is within range and pointed directly at the unit
    • Remove any obstacles between the remote and indoor unit
    • Replace weak batteries or the remote itself if damaged

    Water Leakage From Indoor Unit

    Possible Causes:

    • Excessively high indoor humidity increases condensate formation
    • Condensate water may overflow from the drain pan
    • A loose indoor drain pipe connection allows water to leak inside the room

    What to Do:

    • Check indoor humidity levels and improve ventilation if needed
    • Inspect the drain pipe connection for looseness or blockage
    • Contact a technician to secure or repair the drainage system if leakage continues

    Water Leakage From Outdoor Unit

    Possible Causes:

    • Condensation forms on refrigerant pipes and pipe joints during Cooling Mode
    • Melting ice drains from the unit during Auto Defrost Mode
    • Condensed water drips from the outdoor heat exchanger during Heating Mode

    What to Do:

    • No action is required, as these are normal operating conditions
    • Ensure proper drainage space around the outdoor unit to avoid water pooling
    • Contact a technician only if leakage is excessive or continuous outside these modes

    Noise From Indoor Unit

    Possible Causes:

    • Fan motor or compressor relay switching produces normal operating sounds
    • Refrigerant flow reverses during defrost operation, creating extra noise
    • These sounds occur naturally during standard heating and cooling cycles

    What to Do:

    • No action is required, as these are normal operating sounds
    • Monitor for unusual grinding or rattling that differs from standard operation
    • Contact a technician if noise levels increase abnormally or sound mechanical

    Indoor Unit Does Not Blow Air (Heat Pump Models)

    Possible Causes:

    • The indoor fan stays off for about 2 minutes when the heat exchanger is cold, to prevent cold air blowing
    • Automatic defrost activates when the outdoor unit frosts up, pausing the indoor fan for 3–12 minutes
    • The indoor fan may stop temporarily during Dehumidifying Mode to stabilize room temperature

    What to Do:

    • Allow the unit time to complete its automatic defrost or warm-up cycle
    • Expect brief fan pauses as normal behavior during Heating or Dehumidifying Mode
    • Contact a technician only if airflow does not resume after the expected wait period

    Moisture On Air Outlet Vent

    Possible Causes:

    • Prolonged operation in high humidity conditions causes moisture condensation
    • Moisture builds up on the outlet grille surface over time
    • This is more common in humid climates or during extended cooling cycles

    What to Do:

    • No action is required, as this is a normal condition
    • Wipe away excess moisture if it drips noticeably
    • Contact a technician if moisture appears alongside reduced cooling performance

    When to Call Voltas Service Centre for Technician Visit?

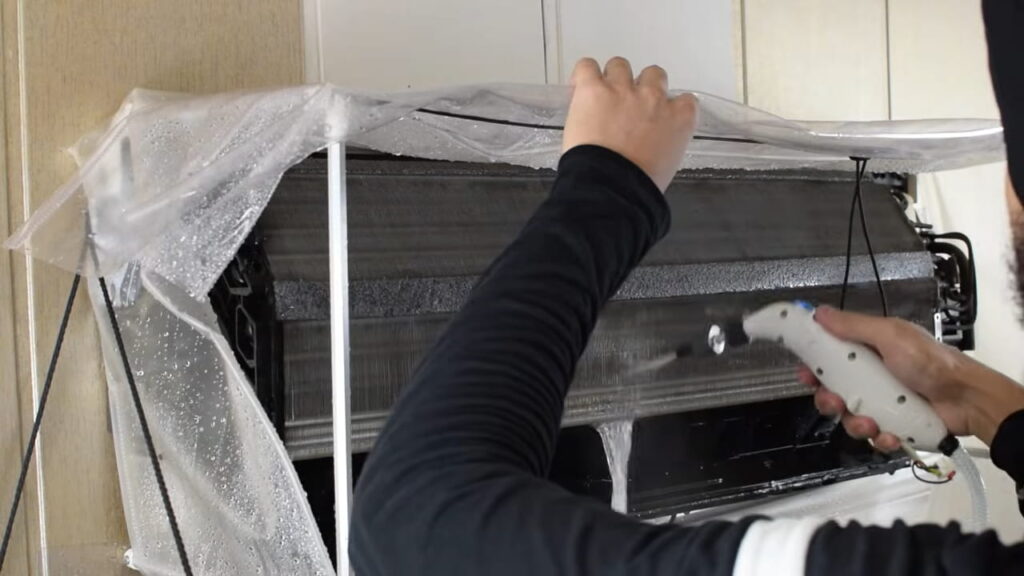

    AC indoor coil evaporator coil cleaning

    Immediately stop operation, unplug the unit, and contact an authorized dealer if:

    • Harsh or unusual sound occurs during operation. Grinding, rattling, or loud mechanical sounds often signal a failing compressor, damaged fan motor, or worn bearings that need urgent professional inspection.
    • A strong or burning odor is emitted during operation. A burning plastic or electrical smell usually points to melted wire insulation, a burnt capacitor, or PCB damage, which can be a fire risk if ignored.
    • Water is leaking inside the room. Indoor leakage often comes from high humidity, drain pipe blockage, or a loose drain connection, and needs a technician to inspect and fix the drainage system.
    • The air switch or protection switch trips frequently. Repeated tripping usually means a short circuit, compressor fault, weak capacitor, or wiring issue drawing excess current, and it should never be reset repeatedly without repair.
    • Water or other liquid has accidentally splashed into the unit. Liquid entering the unit can cause short circuits or corrosion in electrical parts, so the AC should be checked before running it again.
    • The power cord or power plug becomes abnormally hot. This usually indicates loose connections, wiring damage, or overload, and continuing to use the AC in this state can lead to electrical fire.

    Voltas AC error codes help you catch problems early, before they turn into costly repairs.

    Start with simple steps: reset the power, clean filters, and check airflow. Avoid repeated restarts if compressor, PCB, or voltage-related codes appear. If the same error returns, call a professional technician for proper diagnosis.

    Similar Posts
